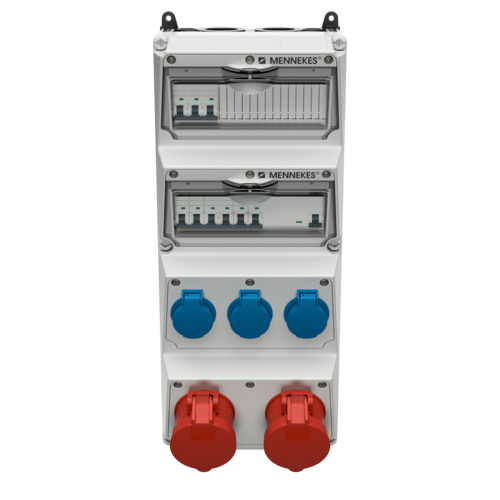

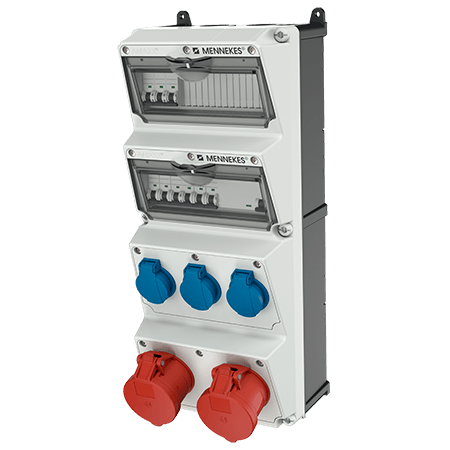

AMAXX receptacle combination 940008
With AMAXX you combine cleverly and save valuable installation time. Only one supply line, fewer drill holes, fewer cable and pipe clamps and only one enclosure with external mounting that allows installation by one person. The hinged enclosure cover opening to the side as well as the pull-out top-hat rails and the large connection compartment simplify the connection. AMAXX is pre-wired for connection and tested for electrical safety and quality according to IEC 61439.
CEE 32 A, 5 p, 400 V
SCHUKO®
- pre-wired for installation
- hinged to the side
- enclosure and insert made of AMAPLAST
- fusing behind a transparent cover
Voit hallita tuotteitamme eri listoilla ostoslista/ostoskori-alueella.
Anna uudelle listalle nimi
- Anna luettelon nimi
- Luettelon nimi on jo olemassa
- Anna kelvollinen luettelon nimi
Tekniset tiedot
AMAXX receptacle combination 940008
| CEE 32 A, 5 p, 400 V | 2 |
|---|---|
| SCHUKO® | 3 |
| Sulake |
|
| Etusulake maks. | 63 A |
| InA | 48 A |
| RDF | 0.6 |
| liitäntä / syöttöjohto |
|
| Suojaustyyppi | IP44 |
| Kotelon materiaali | Muovi |
| Paino | 7550 g |
| Korkeus | 520 mm |
| Leveys | 225 mm |
