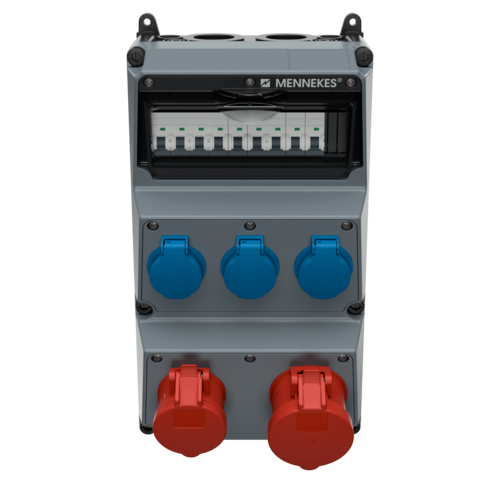

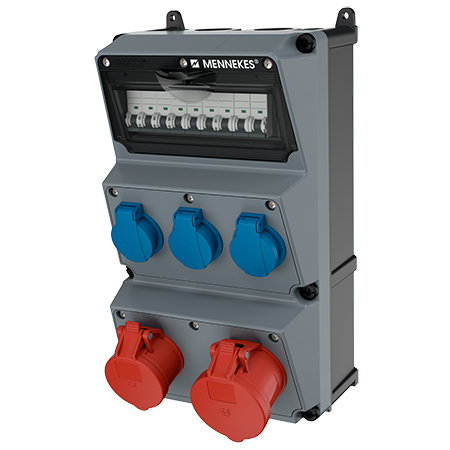

AMAXX receptacle combination 930030
With AMAXX you combine cleverly and save valuable installation time. Only one supply line, fewer drill holes, fewer cable and pipe clamps and only one enclosure with external mounting that allows installation by one person. The hinged enclosure cover opening to the side as well as the pull-out top-hat rails and the large connection compartment simplify the connection. AMAXX is pre-wired for connection and tested for electrical safety and quality according to IEC 61439.
CEE 32 A, 5 p, 400 V
CEE 16 A, 5 p, 400 V
SCHUKO®
- highly resistant to chemicals
- highly heat resistant contact carrier and nickel plated contacts
- pre-wired for installation
- enclosure front cover grey RAL 7000
- hinged to the side
- fusing behind a transparent cover
Voit hallita tuotteitamme eri listoilla ostoslista/ostoskori-alueella.
Anna uudelle listalle nimi
- Anna luettelon nimi
- Luettelon nimi on jo olemassa
- Anna kelvollinen luettelon nimi
Tekniset tiedot
AMAXX receptacle combination 930030
| CEE 32 A, 5 p, 400 V | 1 |
|---|---|
| CEE 16 A, 5 p, 400 V | 1 |
| SCHUKO® | 3 |
| Sulake |
|
| Etusulake maks. | 63 A |
| InA | 54 A |
| RDF | 0.85 |
| liitäntä / syöttöjohto |
|
| Suojaustyyppi | IP44 |
| Kotelon materiaali | Muovi, suuri kemikaalinkestävyys / AMELAN |
| Paino | 4850 g |
| Korkeus | 390 mm |
| Leveys | 225 mm |
