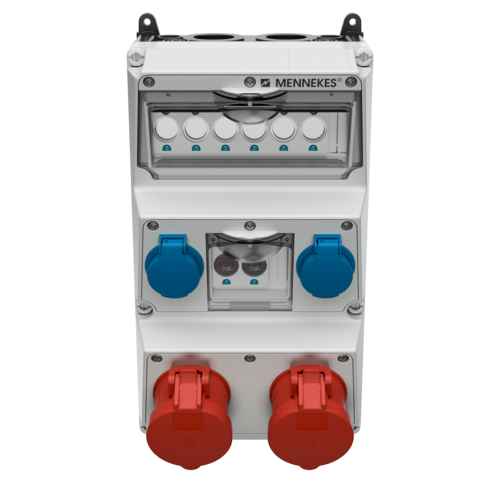

MENNEKES AMAXX receptacle combination 930014

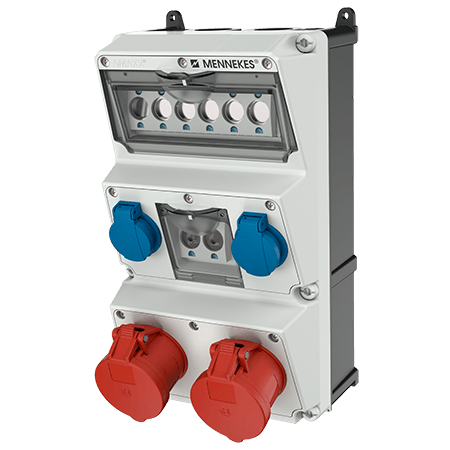

MENNEKES AMAXX receptacle combination 930014 images3d

Ole kiltti hyväksyä markkinointievästeitä katsoaksesi tämän videon.

Video

AMAXX receptacle combination 930014

With AMAXX you combine cleverly and save valuable installation time. Only one supply line, fewer drill holes, fewer cable and pipe clamps and only one enclosure with external mounting that allows installation by one person. The hinged enclosure cover opening to the side as well as the pull-out top-hat rails and the large connection compartment simplify the connection. AMAXX is pre-wired for connection and tested for electrical safety and quality according to IEC 61439.

CEE 32 A, 5 p, 400 V
SCHUKO®
  • pre-wired for installation
  • hinged to the side
  • enclosure and insert made of AMAPLAST
  • fusing behind a transparent cover
  • Osa nro930014
  • EAN4015394223429
  • Std. Pakkaus. 1 Määrä
Voit hallita tuotteitamme eri listoilla ostoslista/ostoskori-alueella.
Anna uudelle listalle nimi
  • Anna luettelon nimi
  • Luettelon nimi on jo olemassa
  • Anna kelvollinen luettelon nimi

Tekniset tiedot

AMAXX receptacle combination 930014

CEE 32 A, 5 p, 400 V 2
SCHUKO® 2
Sulake
  • 2 Neozed D02, 3 p
  • 2 Neozed D01, 1 p
Etusulake maks. 100 A
InA 52 A
RDF 0.65
liitäntä / syöttöjohto
  • yhdelle 2 kaapelille 5 x 25 mm²
Suojaustyyppi IP44
Kotelon materiaali Muovi
Paino 5005 g
Korkeus 390 mm
Leveys 225 mm
